What makes the Glissonic Wind Instruments different?

Blow on a wind, play on a string!

Glissonic is a completely new wind instrument family. The main novelty is that instead of tone holes it uses a longitudinal gap or slot on the tube of the instrument. The two sides of the slot are covered with magnetic foil which attract a magnetized ribbon on top. The ribbon is fixed on the upper end, stretched and lifted up from the lower end as a string on a violin. You can push down the ribbon anywhere, it will seal up perfectly above it, so you can produce any note in the pitch continuum. It can be played with eight fingers of the two hands or by sliding one finger up and down.

The glissonic system can be used on all kind of wind instruments: flute, whistle, clarinet, saxophone, oboe etc. or even the cornett, which is a brass instrument made out of wood.

Crowdfunding campaign coming soon!

Contact us

"In music, a glissando (abbreviated gliss.)
is a glide from one pitch to another.
Sonic is used to describe things related to sound."

Call for scores – new pieces for glissotar

Sonus Foundation for the Support of New Music and Contemporary Performing Arts issues a call for scores for composers to submit short pieces, „musical aphorisms” for a new instrument: glissonic tarogato (glissotar). Selected pieces will be recorded by Daniel Vaczi and published on our webpage, and the best pieces will be performed at a concert in April 2021 in the Hold Street Church in Budapest, Hungary.
You can apply here.

More posts...

glissonic tárogató or glissotar

Schematic image of the glissotar

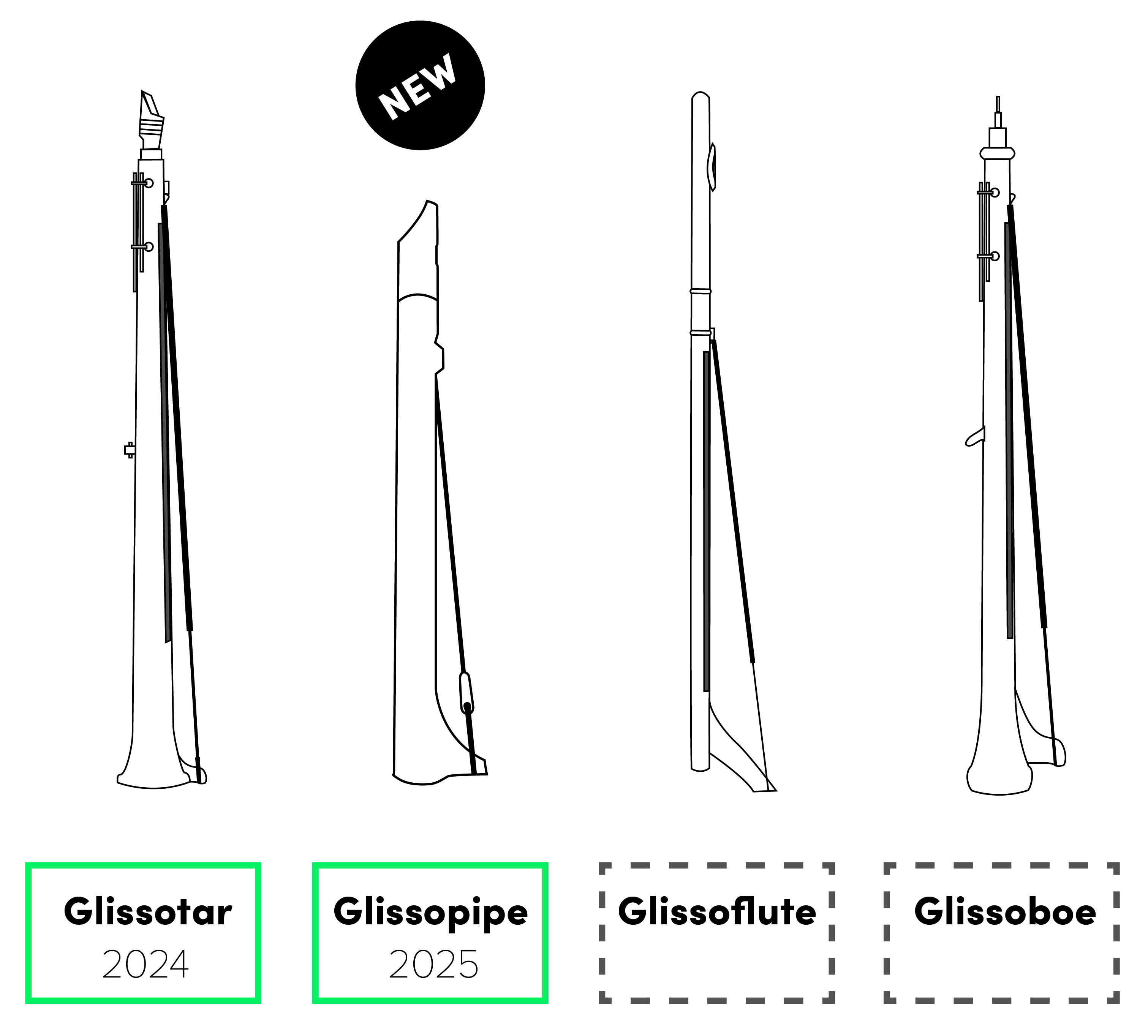

Glissonic Instruments

Glissoflute

An experimental model of the glissonic flute. The body was made by Barna Gábos:
http://www.barnagabosflutes.com

Glissopipe

An experimental model of the glissonic recorder. The body was made by Endre Pásztor.

Glissotar

An experimental model of the glissonic tarogato. The body and keys was made by József Tóth:
http://www.tarogato.net

Glissoprano

The very first experimental model of the glissonic soprano saxophone. The body was made by Zoltán Juhász:
http://www.duola.hu

Videos

Budapest Improvisers Orchestra

Kada ad Libitum

Audio

Glissando

Dániel Váczi - glissotar

Tremolo and dizzy

Dániel Váczi - glissotar

Released strip

Dániel Váczi - glissotar

"A csitári hegyek alatt..."

Hungarian folksong
Dániel Váczi - glissotar

Rebus
by Leonardo da Vinci

Dániel Váczi - glissotar

"Confirmation"
by Charlie Parker

Dániel Váczi - glissotar

PhonUmbra

Free  collective improvisation of the Váczi Dániel Multet, recorded at Lumen, Budapest, 20.03.18.
Dániel Váczi - glissotar
János Ávéd - glissoflute, soprano saxophone
Márton Fenyvesi - guitar
Balázs Horváth - double bass
Zsolt Sárvári Kovács - drums

Autochoralionos

Dániel Váczi - glissotar connected with AutoChoralion (MIDI controlled hand-pumped harmonium)

Inventors

Daniel Vaczi

Dániel Váczi

Dániel Váczi is a saxophone player, composer, inventor and researcher of musical instruments and games.
Born in 1972, Budapest.
He graduated from the ELTE as a biologist in 1998. He studied at the Jazz Saxophone Faculty of the LFZE in 1999 for one year.
He founded his jazz trio in 2001. It became a quintet called Multet in 2009. He is also a member of other bands: Trio Squelini - often with Ditta Rohmann cellist as a guest (world-jazz), Kada ad Libitum (free improvisation), Ektár (world-jazz) and Budapest Improvisers Orchestra (contemporary classical mixed free improvisation). His discography contains about 30 CD.
He developed a “Reticular Music System” which is both a music theoretical approach on the one hand, and a technique for composing and improvising on the other.
With the collaboration of László Fassang and others he made a concert (Etudes for player organ) at MüPa Budapest in 2014 that researched the augmented possibilities of the organ with computerized MIDI control. This work was continued in 2015 (Organmatrix), and extended to dance, animation, and intermedia. His application called SoundEmbroidery - a sound-visualisation tool based on the new and original principle of PitchCompass, programmed and designed by XORXOR - was created and developed for this occasion. He also uses the MIDI controlled acoustic piano player of BMC.
He has engaged in building various music-automatons, and participated in the development of the gigantic music box “Hangjáték” made by Medence Csoport for MüPa as an adviser and composer in 2015. Along with two partners, he produces and distributes programmable mechanical music box called Skatuya.
Among his many music instrument-inventions the glissando-woodwinds - glissonic flute, recorder, tárogató, saxophone, chalumeau (clarinet), oboe - are in their final stage of development. He has plans for a new symmetric - dihexatone - keyboard too.
He has also invented a new game of logic called Urobo. It is based on the circular hierarchy of the 12 music notes.
With his wife, Nóra Jakobi (psychologist, music therapist), and others he has participated in several workshops for children at ÉlményMűhely (Workshop of Experiences) in the field of experience-oriented mathematics focusing on play (Urobo) and its musical aspects (Skatuya) in 2014 and 2015.

Tobias Terebessy

Tóbias Terebessy

Designer, founder of Medence Group Art and Service Partnership.
www.medencedesign.com
Previous projects:
2015-2016: MÜPA Budapest – design and implementation of sound art
2004- : designing and constructing original musical instruments for the Bélaműhely Sound Art Group
2003-2011: Sziget Festival Budapest – designing, building and implementation of the location of the Octopus art programmes, organising programmes, operation
2006-2010: Sziget Festival Budapest – designing Medusa Light Zone
2005-2008: Trafó, a Festival Temps D’Image: Becoming Butterfly, Zevgar, Singing joints – Concept and implementation of stage-set and visual effects
2005-2008: Moholy Nagy László Design Scholarship – neo-nomad light creatures and light shapes
2000- : Medence Csoport Art&Craft&Design Company – founder co-owner (medencedesign.com)
1994-1999: Sopron University Institute of Applied Art – wood designer artist

History

Despite the great number of inventions starting with Leonardo Da Vinci, we were astonished to find him in the first place on this field too. He has a small drawing in the middle of other things in the Codex Atlanticus, Foglio 1106R, showing two flutes with longitudinal gaps on them, with a short text, saying:

"These two flutes do not produce sounds at intervals but rather in the manner of the human voice. This sound is produced by moving your hand up and down, as on a trumpet or a flute. You can also produce sounds at tone intervals of 1/8 and 1/16, and any other sound you like."
www.leonardo3.net/en/l3-works/machines/1479-glissando-flutes.html

Nor the drawing or the short text doesn't explain how he thinks to solve the problem of covering the gap with hands only. The way the Leonardo3 Museum's researchers reconstructed the idea is similar to the well known swanee- or slide whistle.

There were several attempts to make slide saxes in the past 120 years. The most similar was the King C Saxoprano in the 1920's, but it seems that the sealing was imperfect with the rubber band (in the absence of magnetic strip) so it was not a great success. The other models (Royal Slide Saxophone, Swanee-Sax, MellowSax, Straight Slide Alto Saxophone or the Circular Slide Alto Saxophone) has solved the sealing problem more or less, but they all operated with one hand sliding up and down, like a trombone, not with eight fingers, which makes a big difference in playing. Here is probably the most detailed and accurate article about it, written by Paul Cohen in 1994-95:
Royal Slide Saxophone
Voices of the Slide Saxophone II
Voices of the Slide Saxophone III

As we found these great ancestors long after we began with our project, searching for similarities on the web, we came across Bart Hopkin's most recent "Moe" instruments. He found almost the same solution in San Francisco as we did it in Budapest, in parallel, not knowing from each others:
barthopkin.com/instrumentarium/moe-sax/

After we discussed it with him, he wrote about it in his blog too:
barthopkin.com/more-moe/

And check out his other instruments too, they are truely amazing!
